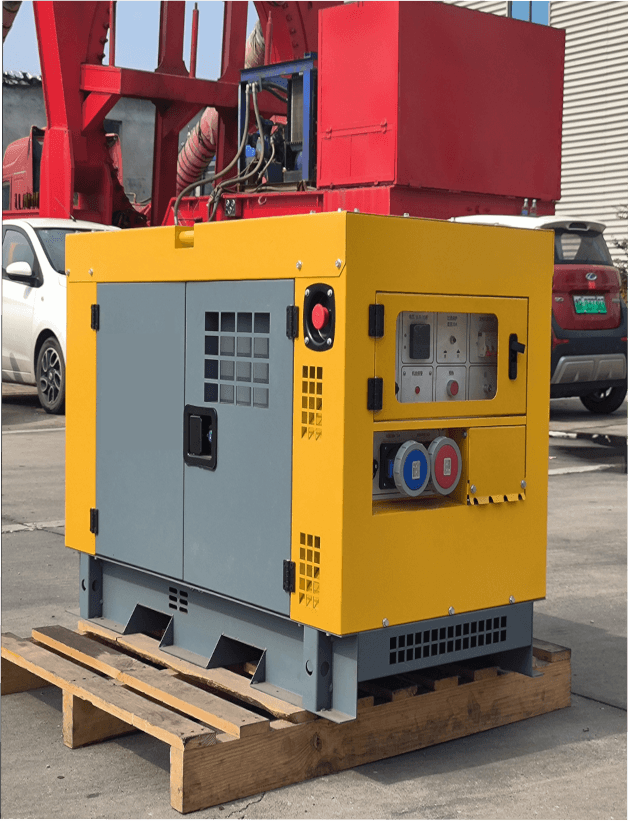

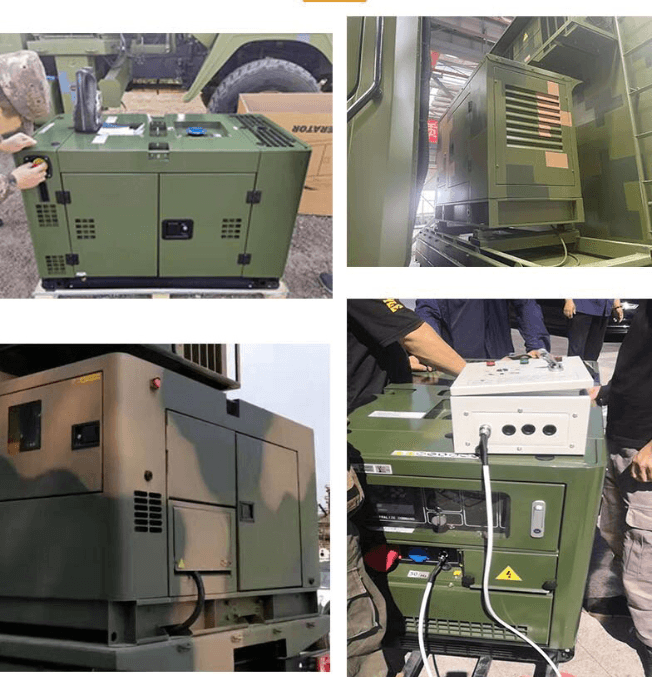

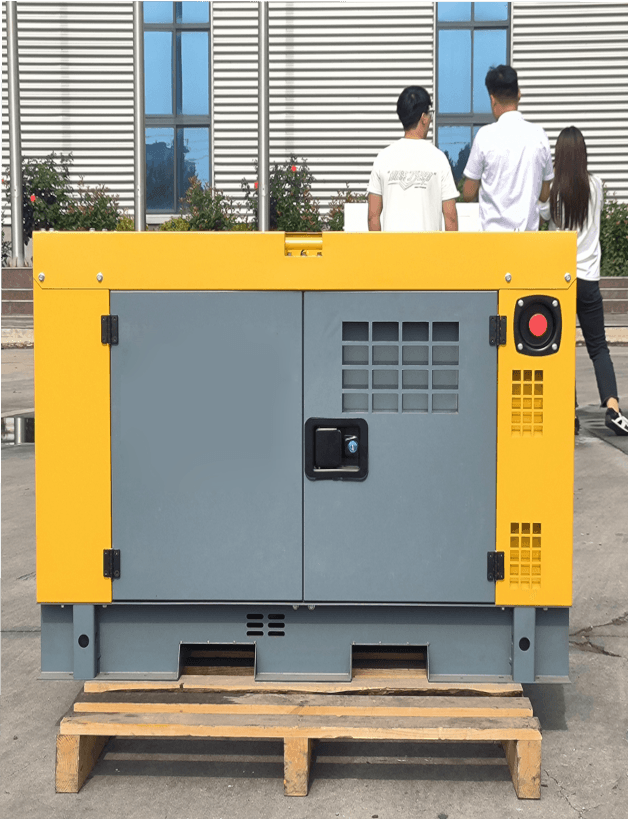

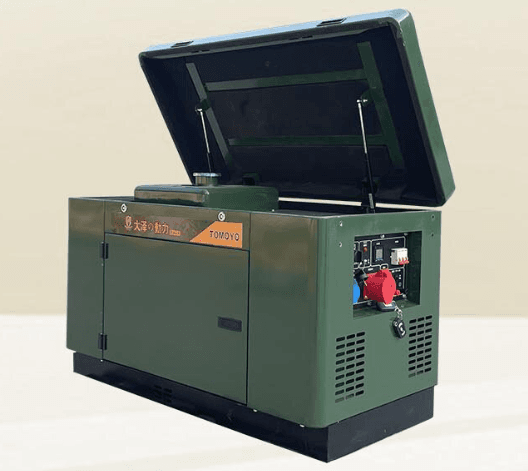

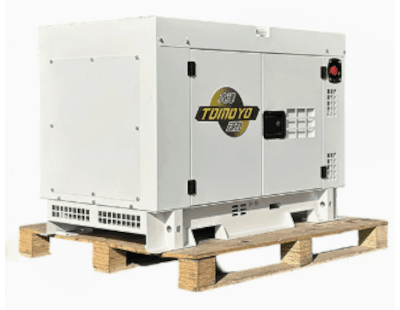

TOMOYO 10-15KW low-noise diesel generator sets, box-type diesel generator series, high-strength power body, reduced power cylinder wear, low loss, high efficiency, low temperature rise, high reliability, and sufficient power.

Type: DZ-TO-10/15KW

Rated power: 10/12/15KW

Backup power: 11/13/16KW

Rated frequency: 50/60HZ

Rated voltage: 220/380V

Structure type: Silent type

Altitude used: <1500M

Power factor: 0,8/1.0

Number of phases: Single-phase/Three-phase

Fuel type: 0# - 10# diesel

Starting method: Electric start (fully automatic optional)

Engine type: Twin-cylinder, air-cooled, four-stroke, vertical, direct injection

Piston displacement (ML): 875/997/2200

Engine oil capacity (L): 2.2L

Working hours: 8-12 hours

No-load fuel consumption: 206g/kw.h

Fuel tank capacity (L): 25/25/32L

Noise level (dB/7m): 68-76

Rated speed: 3000 rpm

Dimensions (L*W*H) (mm): 1180*650*760 /1180*650*760/1180*650*760

Net weight (KG): 260/270/270KG
