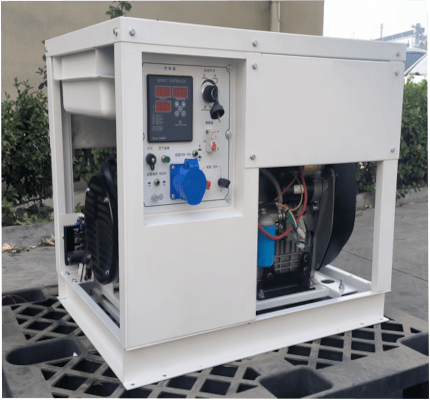

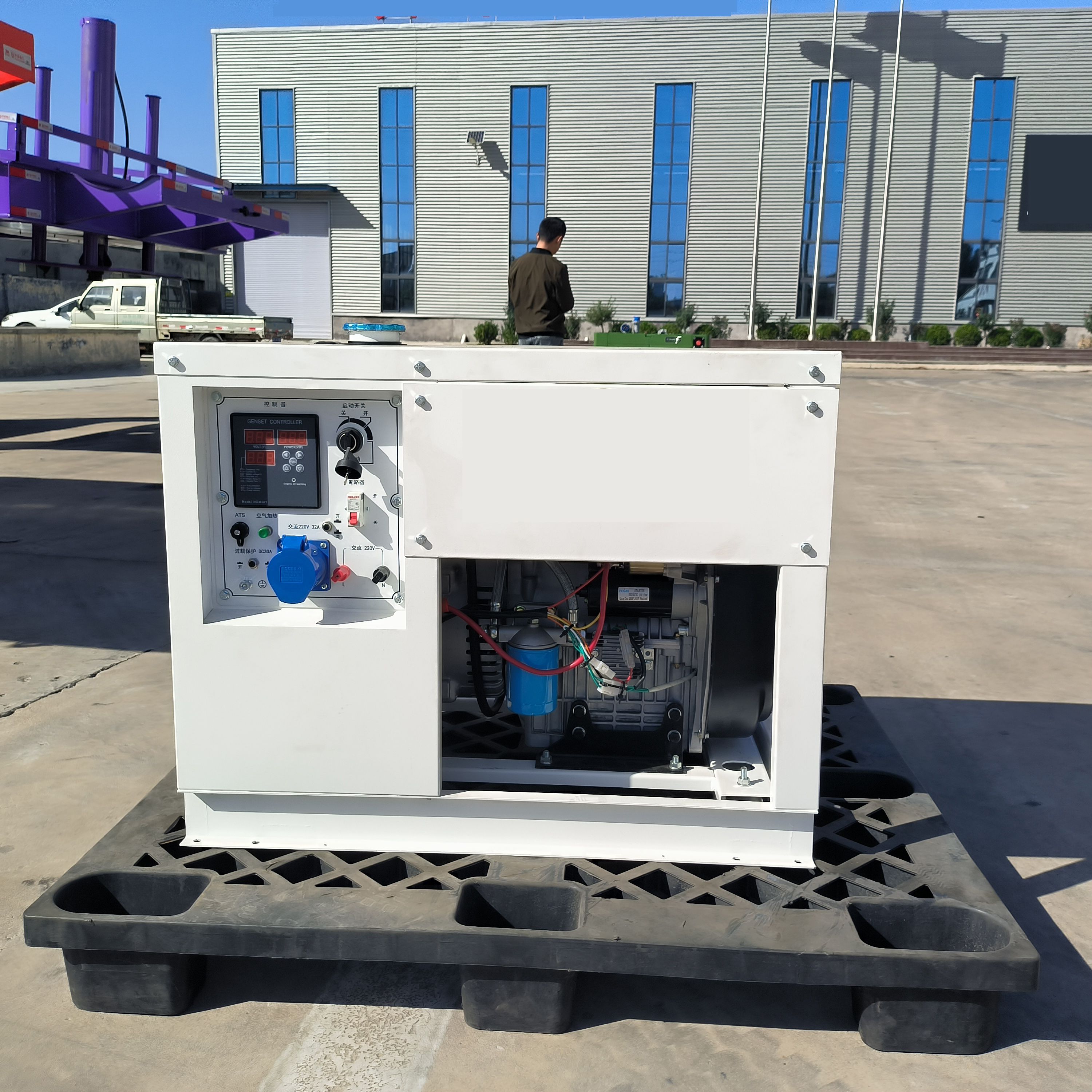

TOMOYO 10-15KW low-noise diesel generator sets, open shelf diesel generator series, high-strength power body, reduced power cylinder wear, low loss, high efficiency, low temperature rise, high reliability, and sufficient power.

Type: DZ-TO-10/15KW(open shelf)

Rated power: 10/12/15KW

Backup power: 11/13/16KW

Rated frequency: 50/60HZ

Rated voltage: 220/380V

Type: Open shelf

Altitude used: <1500M

Power factor: 0,8/1.0

Number of phases: Single-phase/Three-phase

Fuel type: 0# - 10# diesel

Starting method: Electric start (fully automatic optional)

Engine type: Twin-cylinder, air-cooled, four-stroke, vertical, direct injection

Piston displacement (ML): 875/997/997

Engine oil capacity (L): 2.2L

Working hours: 8-12 hours

No-load fuel consumption: 205g/kw.h

Fuel tank capacity (L): 26/26/26L

Rated speed: 3000 rpm

Dimensions (L*W*H) (mm): 950*640*700 /950*640*700 /950*640*700

Net weight (KG): 195/220/220KG
