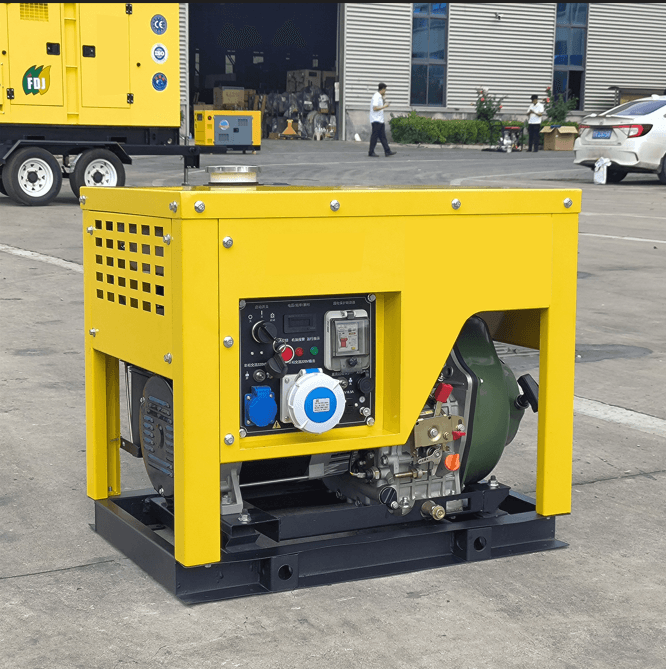

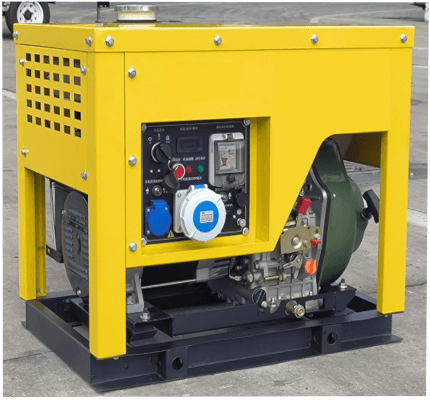

TOMOYO 5-8KW low-noise diesel generator sets, open shelf diesel generator series, high-strength power body, reduced power cylinder wear, low loss, high efficiency, low temperature rise, high reliability, and sufficient power.

Type: DZ-TO-5/6/7/8KW(Open shelf)

Rated power: 5/6/7/8KW

Backup power: 5.5/6.5/7.2/8.2KW

Rated frequency: 50/60HZ

Rated voltage: 220/380V

Type: Open shelf

Altitude used: <1500M

Power factor: 0,8/1.0

Number of phases: Single-phase/Three-phase

Fuel type: 0# - 10# diesel

Starting method: Electric start (fully automatic optional)

Engine type: Single-cylinder, air-cooled, four-stroke, vertical, direct injection

Piston displacement (ML): 456/499/499/531

Engine oil capacity (L): 1.75L

Working hours: 8-12 hours

No-load fuel consumption: 206g/kw.h

Fuel tank capacity (L): 15L

Rated speed: 3000 rpm

Dimensions (L*W*H) (mm): 725*510*630

Net weight (KG): 102KG
